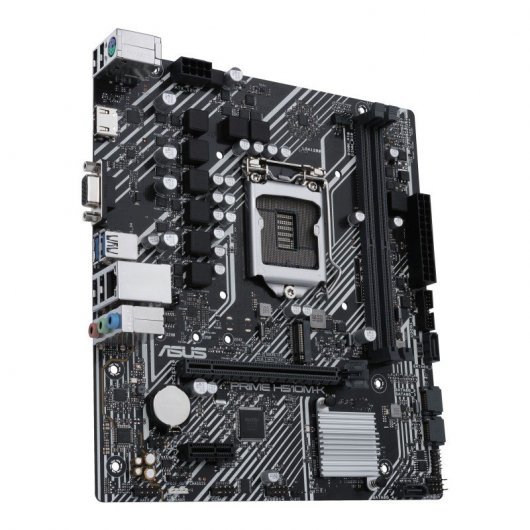

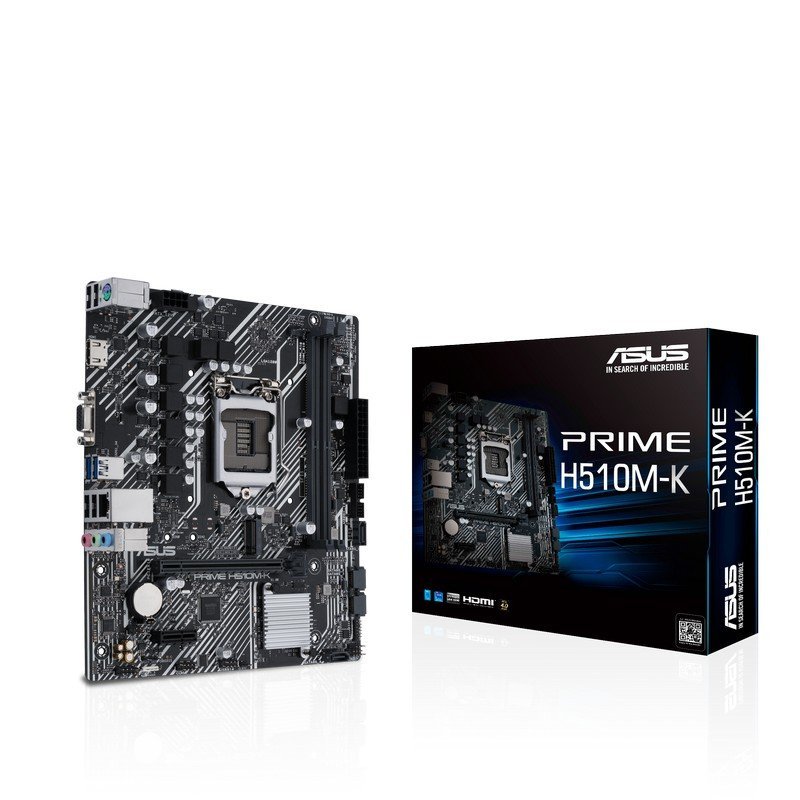

ASUS PRIME H510M-K (1200) 2DDR4 HDMI MATX

ASUS PRIME H510M-K (1200) 2DDR4 HDMI MATX

Placas Base

89.90€ 99.90€

Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® de 11.ª y 10.ª generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, PRIME H510M-K ofrece a los usuarios diarios y a los constructores de PC DIY una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivas.

Características:

  • Zócalo Intel® LGA 1200: listo para procesadores Intel® de 11.a y 10.a generación
  • Conectividad ultrarrápida: PCIe 4.0, ranura M.2 de 32 Gbps, Intel® 1 Gb Ethernet y USB 3.2 Gen 1
  • Refrigeración completa: disipador de calor PCH y Fan Xpert
  • 5X Protection III: múltiples protecciones de hardware para una protección completa

Especificaciones:

  • CPU
    • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    • Supports Intel® 14 nm CPU
    • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    • * Refer to www.asus.com for CPU support list.
    • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    • Intel® H510 Chipset
  • Memory
    • Memory Channels:2DDR4 (Dual Channel)
    • Max Memory Size:64GB
    • DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
    • Dual Channel Memory Architecture
    • Supports Intel® Extreme Memory Profile (XMP)
    • * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
    • * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
    • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
  • Graphics
    • 1 x D-Sub
    • 1 x HDMI™ 2.0**
    • * Graphics specifications may vary between CPU types.
    • ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
  • Expansion Slots
    • Intel® 11th & 10th Gen Processors
    • 1 x PCIe 4.0/3.0 x16 slot
    • - Intel® 11th Gen processors support PCIe 4.0 x16
    • - Intel® 10th Gen processors support PCIe 3.0 x16
    • Intel® H510 Chipset
    • 1 x PCIe 3.0 x1 slot
  • Storage
    • Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
    • Intel® H510 Chipset
    • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
    • 4 x SATA 6Gb/s ports
    • * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
  • Ethernet
    • 1 x Intel® I219-V 1Gb Ethernet
    • ASUS LANGuard
  • USB
    • Rear USB:Total 6 ports
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
    • Front USB:Total 4 ports
    • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • Audio
    • ALC887/897
    • Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
    • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • - Supports up to 24-Bit/192 kHz playback"
    • Audio Features
    • - Audio Shielding
    • - Dedicated audio PCB layers
    • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

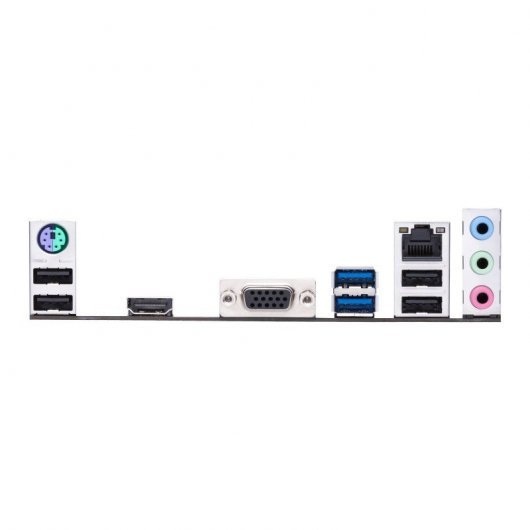

  • Back Panel I/O Ports
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
    • 1 x D-Sub port
    • 1 x HDMI™ port
    • 1 x Intel® I219-V 1Gb Ethernet port
    • 3 x Audio jacks
    • 1 x PS/2 Keyboard/Mouse combo port
  • Intrernal I/O Connectors
    • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin Chassis Fan header
    • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
    • Storage related
    • 1 x M.2 slot (Key M)
    • 4 x SATA 6Gb/s ports
    • USB
    • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
    • Miscellaneous
    • 1 x RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x Speaker header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 10-1 pin System Panel header
  • Special Features
    • ASUS 5X PROTECTION III
    • - DIGI+ VRM
    • - LANGuard
    • - Overvoltage Protection
    • - SafeSlot Core
    • - Stainless-Steel Back I/O
    • ASUS Q-Design
    • - Q-DIMM
    • - Q-Slot
    • ASUS Thermal Solution
    • - Aluminum heatsink design
    • ASUS Lighting Control
    • - RGB header
  • Software Features
    • ASUS Exclusive Software
    • Armoury Crate
    • AI Suite 3
    • - Performance And Power Saving Utility
    •   TurboV EVO
    •   EPU
    •   DIGI+ VRM
    •   Fan Xpert
    • - EZ update
    • ASUS CPU-Z
    • AI Charger
    • DAEMON Tools
    • Norton Anti-virus software (Free Trial version)
    • WinRAR
    • UEFI BIOS
    • ASUS EZ DIY
    • - ASUS CrashFree BIOS 3
    • - ASUS EZ Flash 3
    • - ASUS UEFI BIOS EZ Mode
  • BIOS
    • 128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    • WOL by PME, PXE
  • Accessories
    • Cables
    • 2 x SATA 6Gb/s cables
    • Miscellaneous
    • 1 x I/O Shield
    • 1 x M.2 ANCHOR
    • Installation Media
    • 1 x Support DVD
    • Documentation
    • 1 x User manual
  • Operating System
    • Windows 10 64bit
  • Form Factor
    • microATX
    • 22.6cm x 20.3cm
