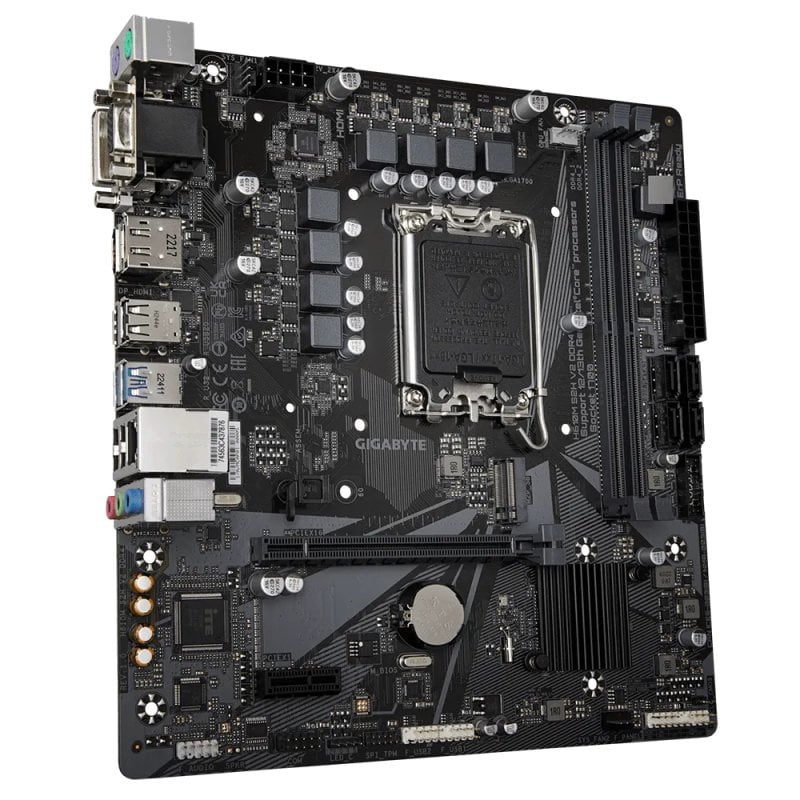

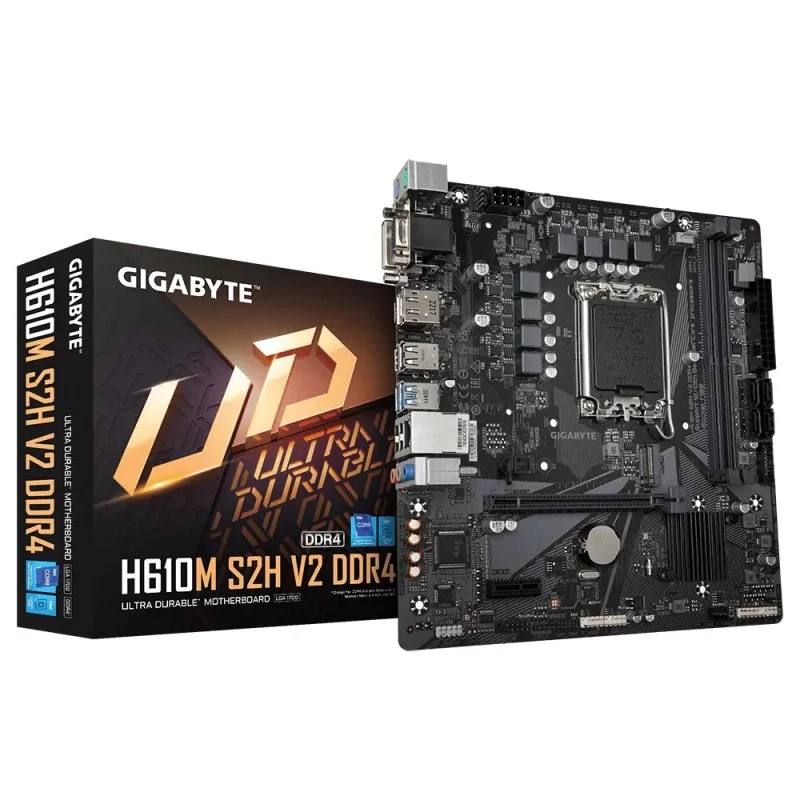

PLACA BASE GIGABYTE H610M S2H V2:(1700) 2DDR4 HDMI VGA DVI DP MATX

PLACA BASE GIGABYTE H610M S2H V2:(1700) 2DDR4 HDMI VGA DVI DP MATX

Placas Base

95.90€

Especificaciones Gigabyte H610M S2H V2 DDR4

  • Procesador
    • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    • L3 cache varies with CPU
    • * Please refer to "CPU Support List" for more information.
  • Chipset
    • Intel® H610 Express Chipset
  • Memoria
    • Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • support for Extreme Memory Profile (XMP) memory modules
    • (Please refer "Memory Support List" for more information.)
  • Gráfica Integrada
    • Integrated Graphics Processor-Intel® HD Graphics support:
    • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    • * The DVI-D port does not support D-Sub connection by adapter.
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • * Support for HDMI 2.0 version and HDCP 2.3.
    • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • * Support for DisplayPort 1.2 version and HDCP 2.3
    • (Graphics specifications may vary depending on CPU support.)
  • Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    • Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    • Zócalos de Expansión
    • CPU:
    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    • Chipset:
    • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    • Interfaz de almacenamiento
    • Chipset:
    • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
    • 4 x SATA 6Gb/s connectors
  • USB
    • Chipset:
    • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • 4 x USB 2.0/1.1 ports on the back panel
    • Chipset+USB 2.0 Hub:
    • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Conectores Internos E/S
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x M.2 Socket 3 connector
    • 4 x SATA 6Gb/s connectors
    • 1 x RGB LED strip header
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x Clear CMOS jumper
  • Panel E/S Trasero
    • 1 x PS/2 keyboard port
    • 1 x PS/2 mouse port
    • 1 x D-Sub port
    • 1 x DVI-D port
    • 1 x DisplayPort
    • 1 x HDMI port
    • 2 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
